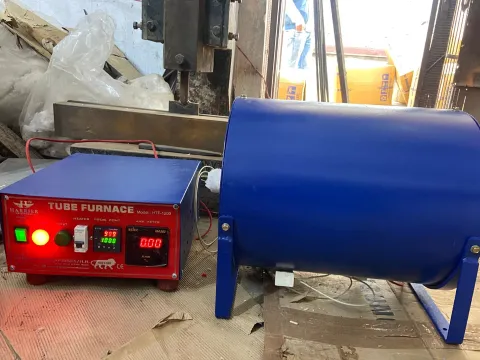

Cylindrical Tube Furnace

Cylindrical Tube Furnace Manufacturer in India

A cylindrical tube furnace is a type of laboratory furnace that has a cylindrical chamber. The chamber is typically made of a refractory material, such as mullite or zirconia, which can withstand high temperatures without melting. The heating element is usually made of molybdenum disilicide, which is a high-temperature metal that can withstand temperatures up to 1800°C.

Application

1200°C Cylindrical Tube Furnace (Programmable) is Mainly Provides High Temperature Heat Treatment Environment For Industrial, Research Institutes, Factories And Other Industrial Laboratories, And Is Applied To New Materials Such As Metal Materials, Ceramic Materials, Nano Materials, And Semiconductor Materials.

Product Specification

Type

Cylindrical Tube Furnace

Max Temperature

1200℃/1400°C

Continue Operating Temp.

1150℃/1350°C

Heating Element

Kanthal “A-1” Wire in Coil Form

Insulation

➢ First layer: 1430℃ ceramic fiber board& Zirconia Fiber Blanket.

➢ Second layer: 1260℃ ceramic fiber board & Zirconia Fiber Blanket.

➢ High Quality Ceramic Fiber Zirconia Grade Thermal Insulation Material to Ensure A Good Uniformity

Temperature Accuracy

±1℃

Thermocouple

K type (Pt-Rh to Pt-Rh) with 99.7% purity Alumina tube

Temperature Controller

➢ PID automatic control via SSR power control with phase angle fired, current limiting resistor.

➢ 1 programmable x 16 segments for precise control of heating rate, cooling rate and dwell time.

➢ Built in PID Auto-Tune function with overheating & broken thermocouple broken protection for this Split Tube Furnace 1200 type.

➢ Over temperature protection and alarm allows for operation without attendant

Electronic Component

Autonics / Schneider / L&T Electronics Brands

Heating Rate

≤ 15℃/Min (Suggest 10℃/Min For Longer Life Using of Furnace)

Safety Protection

Overheat And Thermocouple-Break Alarm

Certification

NSIC Regd, ISO 9001 – 2015/14001-2015/13485-2016/FDA/GMP/CE Certified

Furnace Shell

High Quality GI Sheet With PP Powder Coated

Accessories

One Pair of High Temperature Furnace Gloves

One No of Bot Tong and Operational Manual

Optional

Quartz / Alumina Bot

Warranty

➢ One-year limited warranty for this Split Tube Furnace 1200 type with lifetime support. (Consumable parts such as heating elements and Sensor, crucibles are not covered by the warranty, please order the replacement at related products)

ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of One Year Limited Warranty.

Using Attentions

➢ The cooling rate of this Split Tube Furnace 1200 type shall also not exceed 8℃ /min.

➢ Toxic or explosive gases are not recommended for use with this Split Tube Furnace without necessary safety controls and supervision.

➢ Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence
